Vertical cylindrical grinder

SFH200 CNC Precision Vertical Internal and External Grinding
Editor:xghlDate：2019-01-09 11:09 click：

產品詳情
產品參數

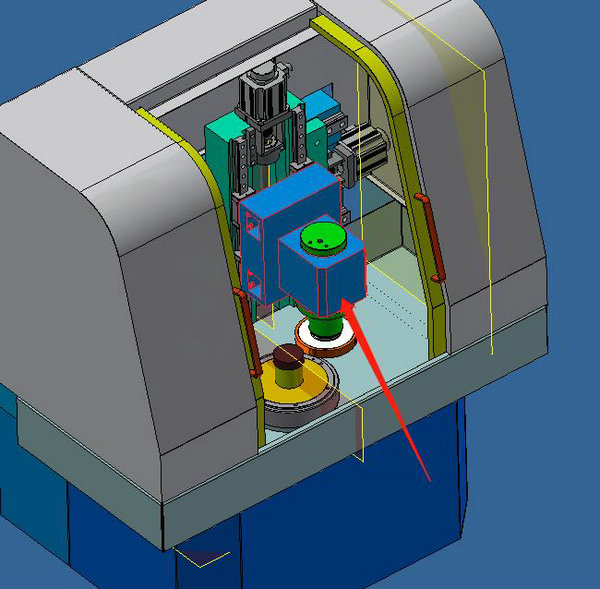

SFH200 CNC Precision Vertical Internal and External Grinding Machine

Purpose:

Suitable for grinding inner and outer circles, planes and end faces. The main grinding products are bushes, bearing seats, bearings, ceramic sealing rings, tungsten steel sealing rings and various precision parts. It has high speed, high precision and can be customized according to needs.

next: end...
pre: end...

Category

CNC horizontal shaft rotary su
High precision rotary surface
High speed rotary surface grin
Vertical cylindrical grinder
Round table grinder
Automatic tool aligner
Sheet metal parts
Ceramic Seal Grinding Machine

News

Application of Horizontal Axis Round Tabl
What are the characteristics of a round t
Why do surface grinders need to install h
How to install grinding wheel of surface
How to grind a surface grinder?

Hot

NO	project	Specifications, parameters	Specifications, parameters
	SFH20OCNC Vertical Internal and External Grinding Machine	Precision grinder	High precision grinding machine
1	Workbench diameter（mm）	Φ200	Φ200
2	Grinding Workpiece Size Range (Diameter x Height)（mm）	Φ200×150	Φ200×150
3	Workbench speed（r/min）	0～450	0～450
4	Maximum Bearing Capacity of Workbench(KG)	100	100
5	Trailer (X-axis) reciprocating speed（m/min）	6	6
6	Trailer reciprocating trip（mm）	320	320
7	Grinding Wheel Spindle Speed（r/min）	6000	6000
8	Spindle centering cone runout（mm）	0.003	0.001
9	Grinding Wheel Size (Outer Diameter * Width * Inner Diameter)	Φ150×40	Φ150×40
10	Fast lifting speed of grinding head（mm/min）	6000	6000
11	Minimum vertical feed of grinding head（mm）	0.001	0.001
12	Workbench end runout（mm）	0.003	0.001
13	Workpiece flatness（mm/m）	0.005/1000	0.003/1000
14	Grinding wheel spindle motor powerKW	7.5	7.5
15	Torque of Vertical Lift Servo Motor NM	10	10
16	Torque of Reciprocating Servomotor on WorkbenchNM	7	7
17	Workbench motor powerKW	1.5	1.5
18	Machine tool net weight	2000	2000
