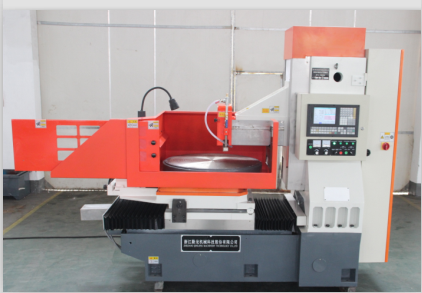

CNC Horizontal table surface grinding machine SSKMG7380 (high precision)
Equipment principle and construction:
SSKMG7380 with grinding head in the carriage for reciprocating carriage in the column rails for vertical movement of the form. Bed, pillars and other castings all use secondary tempering stress relief processing material is good, high strength, to ensure the stability of the equipment.
Advantages:
Independent research and development grinder feed NC control system with easy parameter settings. Operates by keys, automatic knife, automatically calculates the grinding edge, grinding is more uniform, reduces the amount of deformation, processing more accurate and efficient production. The equipment uses the speed (CBN) the grinding wheel to process both ends while enhancing the end surface smoothness. Uniform size, especially the grinding of the step surface. The workbench is equipped with automatic charge and a demagnetization device, with magnetic adjustment, loss of magnet protection and other functions. Equipment selection Hydro-static grinding head, using imported rails. Operating system, independent research and development, is now the most convenient and most humane operation. A strong after-sale protection.
Characteristics:
1. The adaptability of processed products;
2. high precision,
3. After processing up to Ra 0.4 μm, the work piece thickness of the gap remains at 0.003mm within the roughness surface.
4. the operator labor intensity is low, one person control multiple machines, reduce labor costs;
 5. High production efficiency and good economic efficiency
6. Simple grinder maintainance
7. Easy to produce Management modernization.
 8. For high-precision work piece processing.





73180 CNC Horizontal Grinding Machine Horizontal Grinding Machine Flat Surface Grinding Machine Shortcut Title: Custom Property: Headline [h] Recommend [c] Slide [f] 特殊 特性 [c] Slideshow [f] TAG tags: (',' numbers separate, individual tags less than 12 bytes) Weight: 386 (the more the more the front) Thumbnails [], [] : /upfiles/2-1612020Z0380-L.jpg Local upload Select the file Select the station to cut the remote document Main section: Shortcuts Select the document Sub-column: Select the sub-column Product details: Source code Format Font size Product parameters: Source code Format Font size

主要技術規格	高速靜壓    sskm73180
Main TechnicaL Specifications
工作臺直徑（mm）	Φ1850
Diameter Of Work Table（mm）
磨削工件最大尺寸	Φ1850*100
Maximum Size Of Grinding Workpiece（mm）
工作臺轉速（rpm）	0～110
Revoving Speed Of Work Table （rpm）
工作臺最大承重（kg）	800
Maximum  Load-bearing Of Work Table（kg）
托板往復速度X軸(m/s)	0～3
Reciprocating Speed Of The  Dragging Plate X Axis (m/s)
托板往復行程（mm）	1200
Reciprocating Speed Of   Dragging Plate （mm）
砂輪主軸轉速(rpm)	2850
Speed Of Main Spindle Of Grinding Wheel (rpm)
主軸定心錐面跳動（mm）	0.003
Runout Of Centering Conical Surface Of Main spindle（mm）
砂輪尺寸（mm）	Φ400x50xΦ203
Dimensions Of Grinding Wheel（mm）
垂直快速升降(mm/min)	200
Vertical Rapid Going Up And Down(mm/min)
垂直進給最小進給量（mm）	0.002
Minimum Amount OF Feed Of Vertical Feed （mm）
加工平面度（mm）	0.005/1000
Processing Planeness（mm）
工作臺端面跳動（mm）	0.02
End Face Runout Of Work Table              （mm）
工作臺電機功率(kw)	15
Motor Power Of Work Table (kw)
砂輪主軸電機功率(kw)	15
Motor Power Of Main Spindle Of Grinding Wheel (kw)
垂直升降伺服電機(n.m)	15
Servo Motor For Verticai Going Up And Down(n.m)
工作臺往復伺服電機(n.m)	15
Servo Motor For Fen Reciprocation Of Work Table(n.m)
水泵電機功率	250
Motor Power Of Water Pump(w)
機床凈重(kg)	18000
Net Weight(kg)
